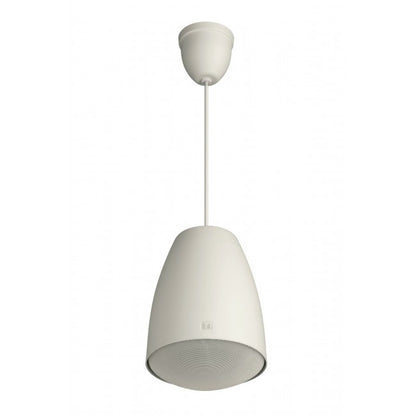

TOA PE-304 Pendent Speaker

The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

• Ideally suited for BGM and announcements
• Stylish and outstanding design inspired by the finest lighting fixtures
• Excellent sound quality
• Sturdy cable extendable up to 5 meters
• Paintable

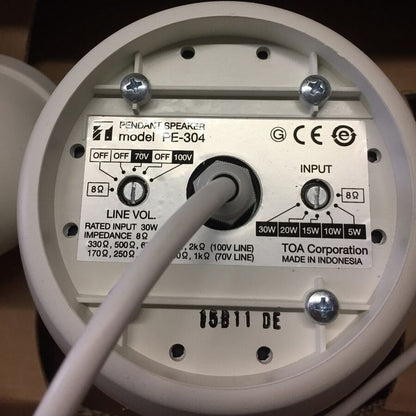

• Input impedance easily changeable
• Bass-reflex type


  Frequency response	70 Hz - 20 kHz
  Connection	Push-in connector (bridging terminal - 2 branch type)
  Sensitivity (1?W, 1?m)	91 dB (500 Hz � 5 kHz, pink noise)
  Speaker component	12 cm cone-type + balanced-dome tweeter
  Rated input (High Impedance)	30 W
  Tappings	100 V line: 330 ? (30 W), 500 ? (20 W), 670 ? (15 W), 1 k? (10 W), 2 k? (5 W) 70 V line: 170 ? (30 W), 250 ? (20 W), 330 ? (15 W), 500 ? (10 W), 1 k? (5 W) Low impedance: 8 ?
  Finish	HIPS resin, off-white (RAL 9010 or equivalent)

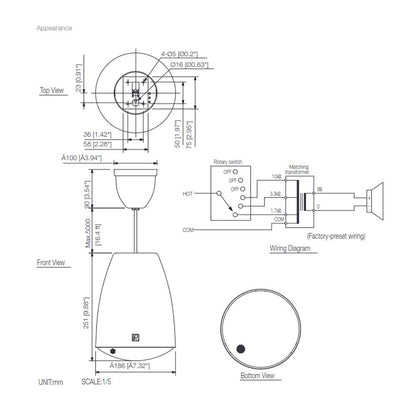

  Dimensions	186 x 251 mm (� x H)
  Weight	2.1 kg
