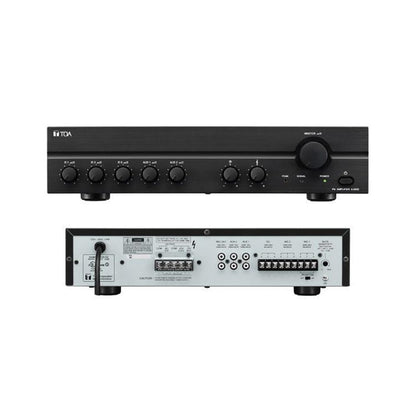

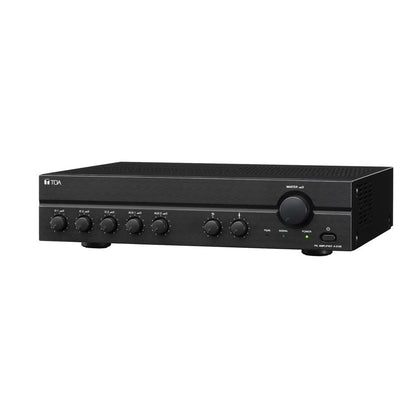

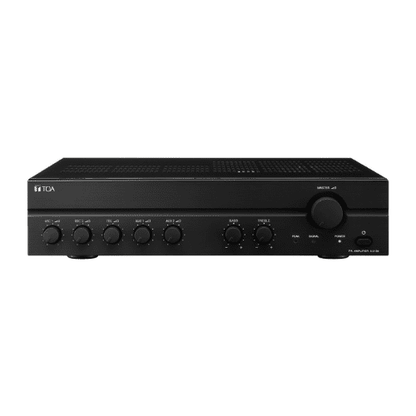

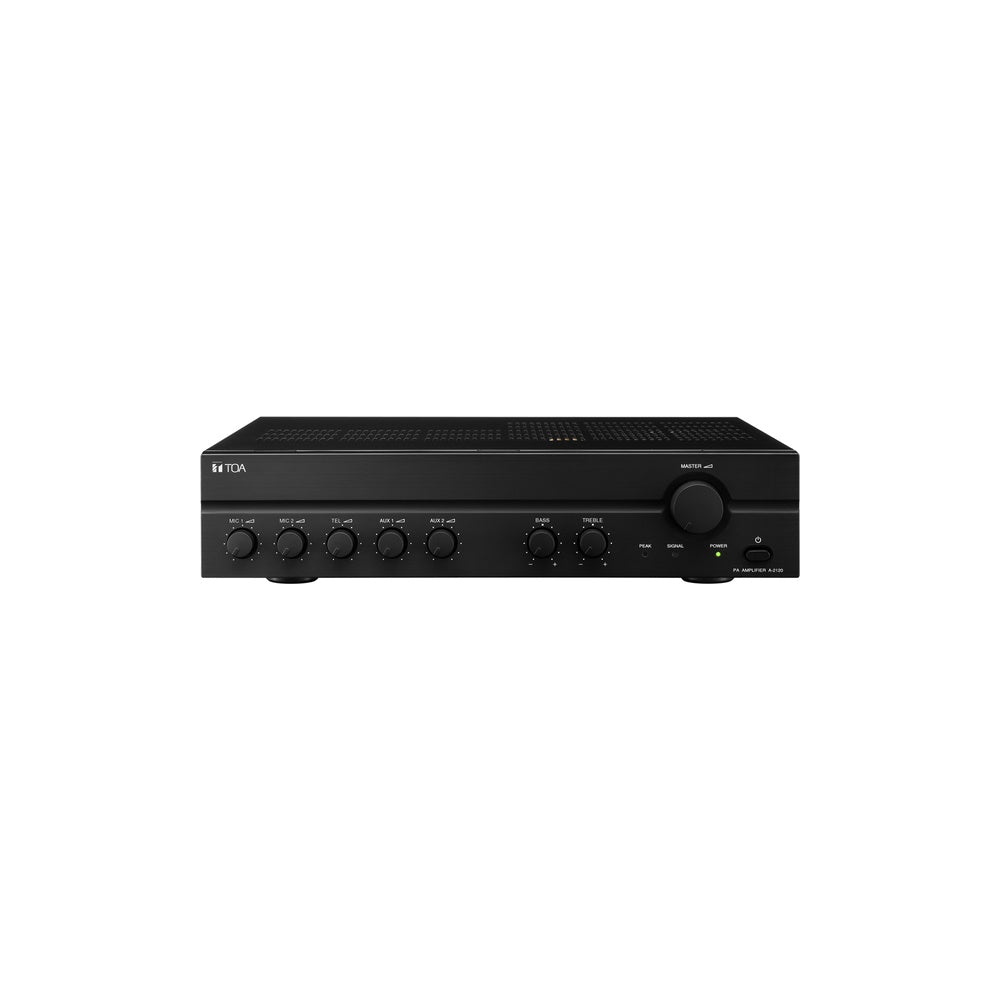

TOA A-2120 CE Mixer Power Amplifier

The A-2120 CE is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Power Source 220 - 240 V AC, or 24 V DC

Rated Output 120 W

Power Consumption 124 W (EN60065), 8 A (DC operation at rated output)

Frequency Response 50 - 20,000 Hz (�3 dB)

Input MIC 1: -60 dB*, 600 ?, balanced, DIN type (5 pins)

MIC 2, 3: -60 dB*, 600 ?, balanced, phone jack

AUX 1, 2: -20 dB*, 10 k?, unbalanced, RCA pin jack

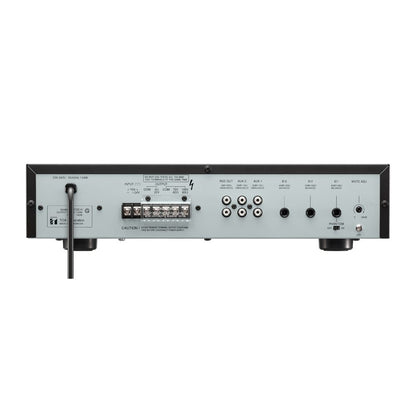

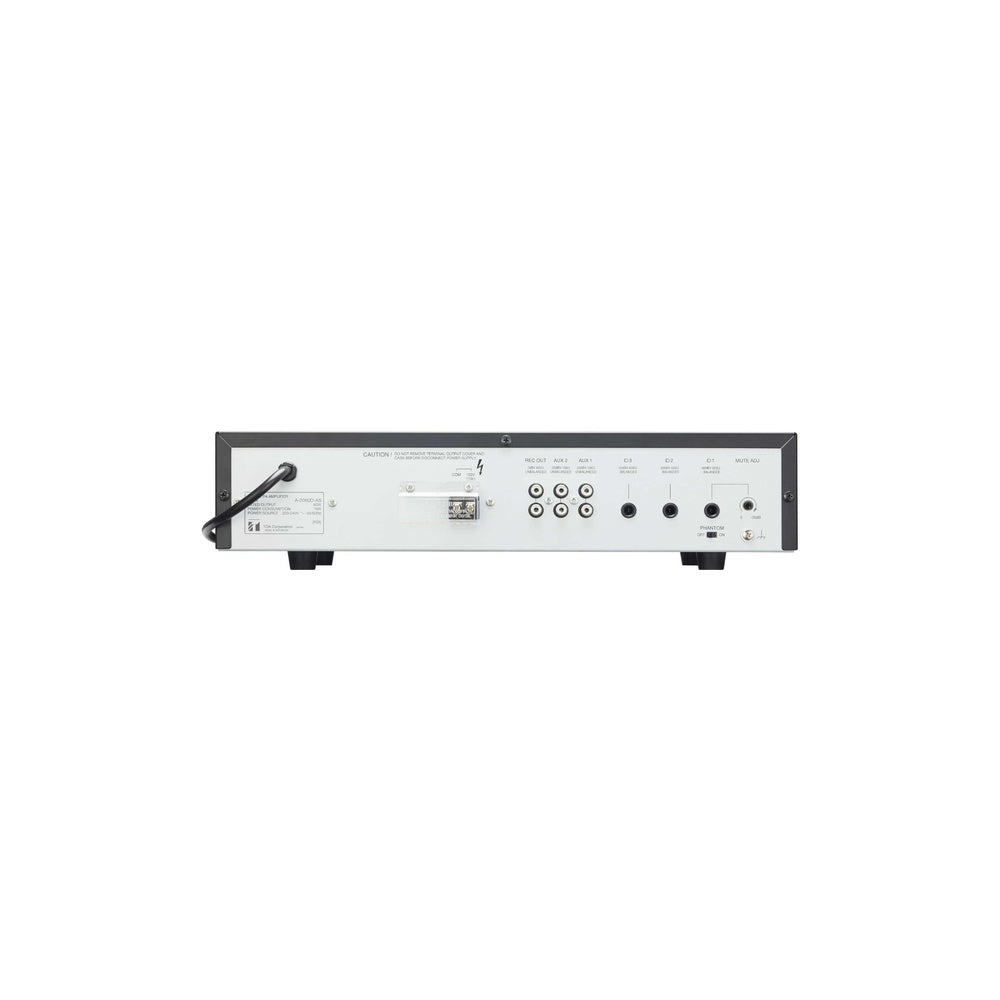

Output

Speaker out: Balanced (floating), M3.5 screw terminal,

distance between barriers: 8.3 mm (0.33")

High impedance: 83 ? (100 V), 42 ? (70 V)

Low impedance: 4 ? (22 V)

Rec out: 0 dB*, 600 ?, unbalanced, RCA pin jack

distance between barriers: 8.3 mm (0.33")

Phantom Power DC +21 V (MIC 1)

S/N Ratio 60 dB or more

Dimensions 420 (W) � 100.9 (H) � 360.3 (D) mm (16.54" � 3.97" � 14.19")

Weight 10.8 kg (23.81 lb)
