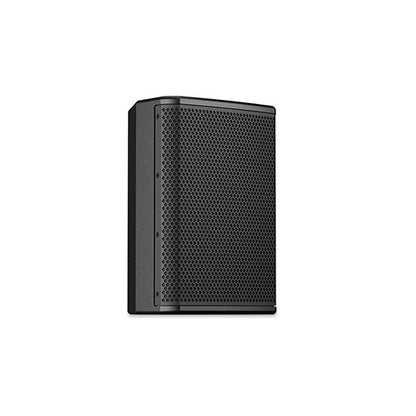

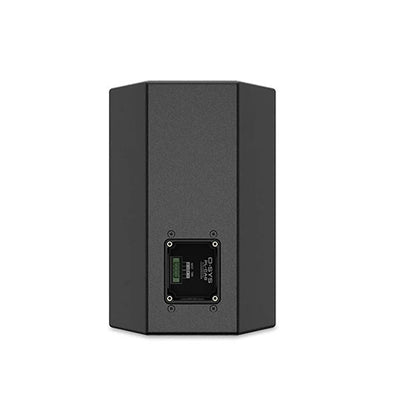

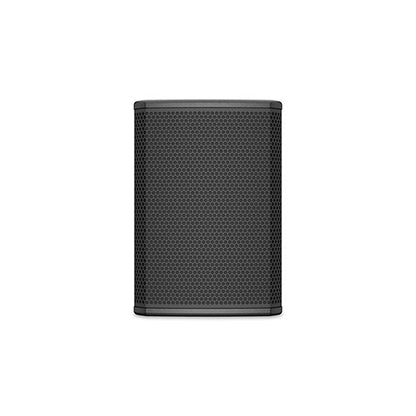

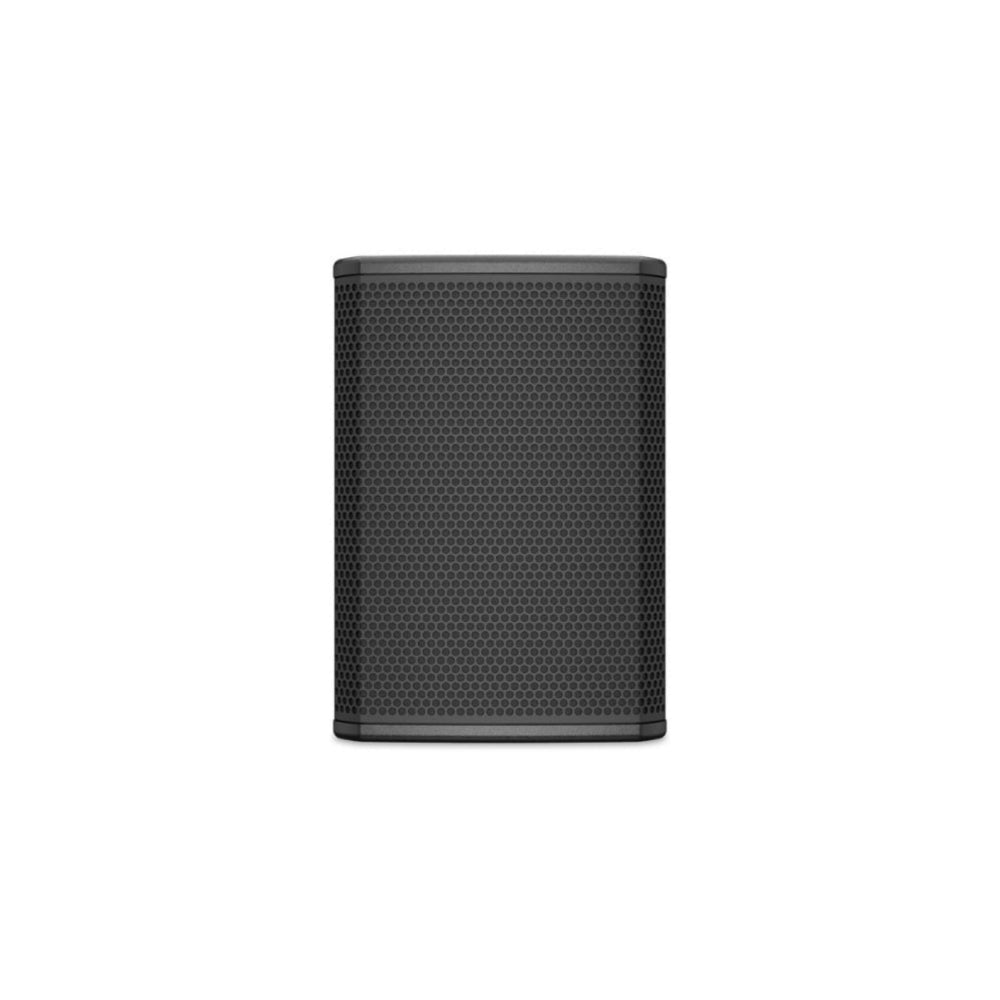

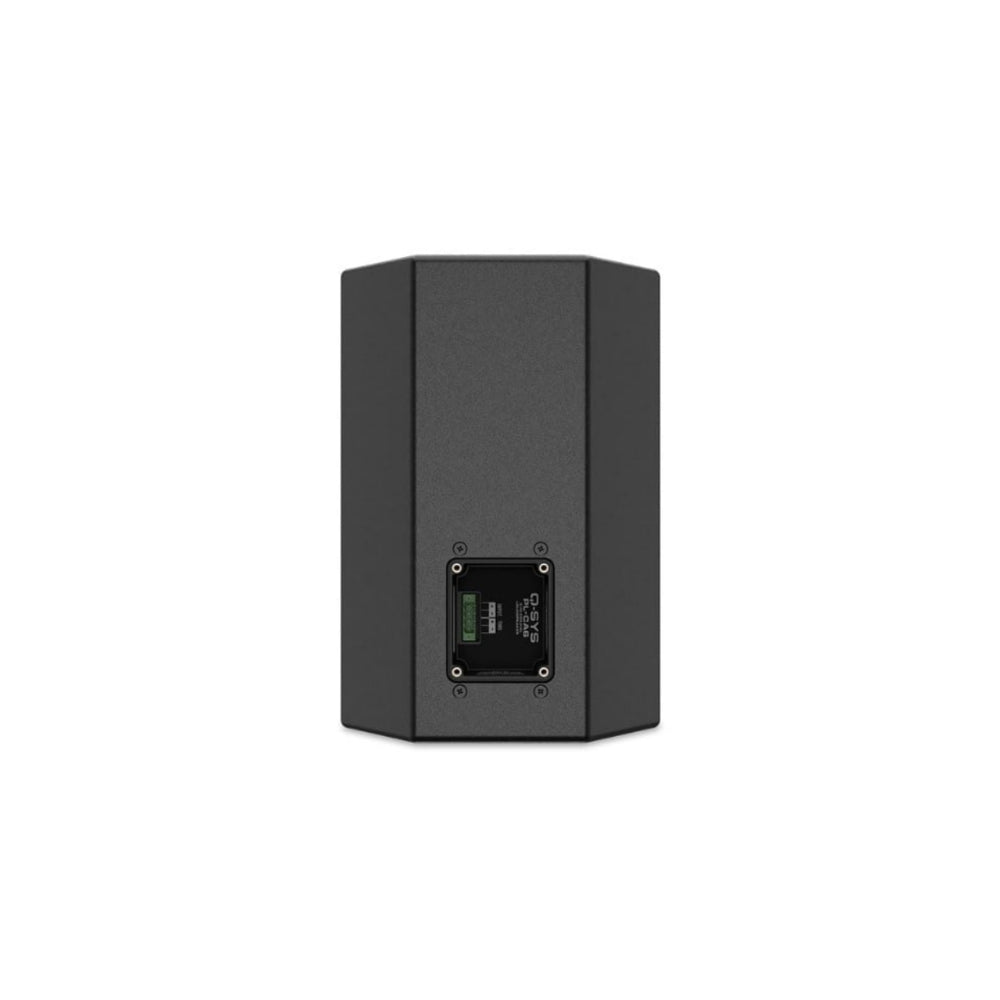

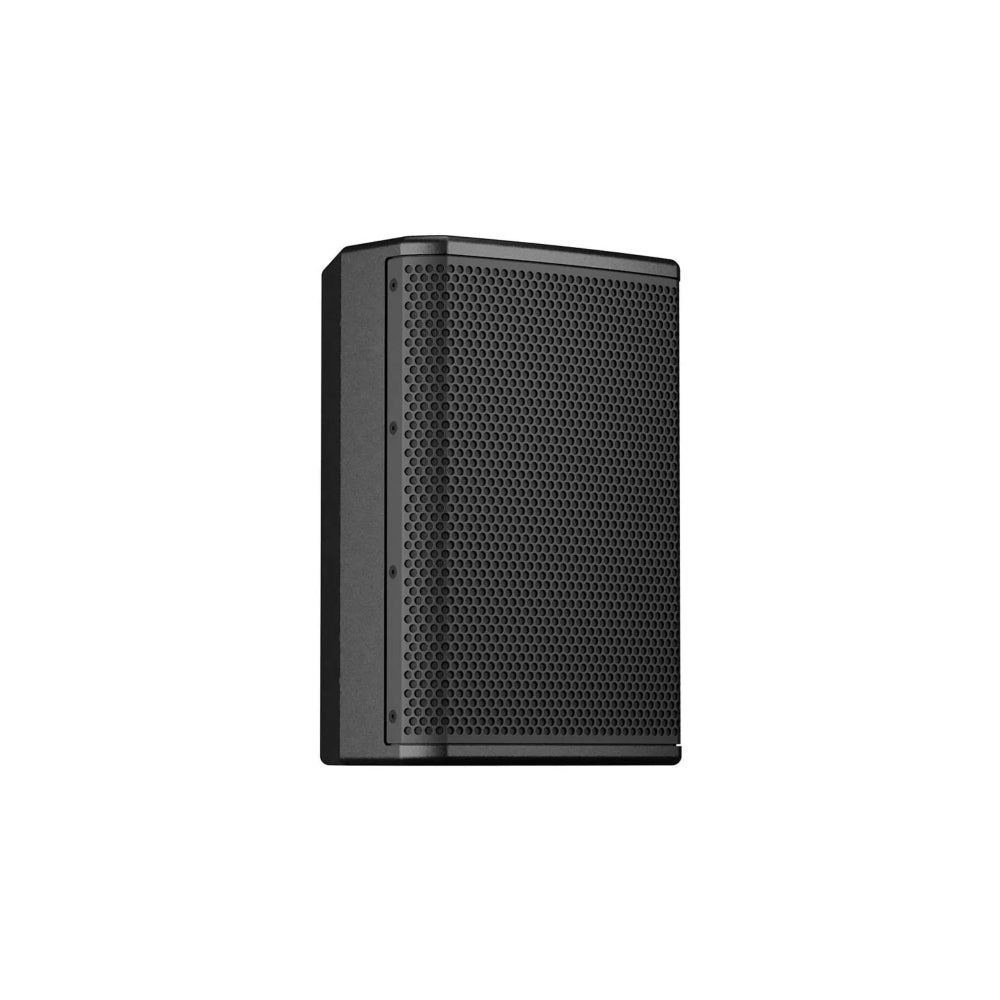

Q-SYS PL-CA6 Two-way, full-range coaxial loudspeaker
Product details
Description
- Type: 2-way, full range, coaxial, passive
- System power rating: 41.5 Vrms, continuous power 215 W @ 8 Ω, rated power 430 W @ 8 Ω
- System Impedance: 8Ω
- LF transducer: 6 in (170 mm), 1.75 in (44.5 mm) voice coil
- Coaxial tweeter: compression driver, 1.4 in (35.5 mm) voice coil
- Coverage (horizontal x verical): 120° conical DMT
- System Bandwidth (-3dB με EQ): 71Hz - 19kHz (no subwoofer)
- System Bandwidth (-6dB με EQ): 67Hz - 20kHz (no subwoofer)
- System Bandwidth (-10dB με EQ): 61Hz - 20kHz (no subwoofer)
- System sensitivity: 98dB 1W/1m
- Max SPL (continuous): 112dB
- Maximum SPL (peak): 124dB
- Maximum SPL (calculated): 122dB
- Connectors: 1 x Euroblock 4 poles (14 AWG (2.5mm²)
- Enclosure material: 12mm Baltic exterior plywood
- Grille thickness: 18 Ga, 1.2mm
- Weatherization: IP-54
- Dimensions (HxWxD): 316 x 220 x 180mm
- Weight: 6.1kg
- Color: Black
- Recommended amplifiers: CX-Q 8K4 (up to 4 loudspeakers per ch) / CX-Q 4K4 (up to 3 loudspeakers per ch) / CX-Q 2K4 (up to 2 loudspeakers per ch)
