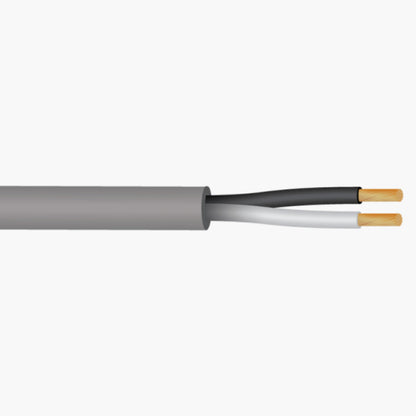

Paige 454100UE 14AWG-2C Solid, Unshielded, LSZH Cable

1. Conductor
1.1 Material: Bare Copper
1.2 Size: 14 AWG
1.3 Stranding: 19 Strand

 2. Insulation

2.1 Material: Low Density
2.2 Polyethylene
2.3 Wall Thickness: .014”
2.4 Color Code: Black, White

 3. Jacket

3.1 Material: Low Smoke Zero
3.2 Halogen Polyolefin
3.3 Wall Thickness: .015”
3.4 O.D.: .228” nom.
3.5 Ripcord: Yes
3.6 Surface Print: “PAIGE #454100UE LSZH 14 AWG 2/C 75C 300V ROHS
(Ascending/Descending Sequential footage markers)
3.7 Color: Gray

 4. Electricals

4.1 Voltage Rating: 300 Volts
4.2 Temperature Rating: -20DegC - +75DegC

5. Standards

5.1 RoHS Compliant
5.2 Halogen free according to IEC
5.3 60754-1
5.4 Non-dense smoke according to IEC 61034-1 and 61034-2
5.5 Non-corrosive gas according to IEC 60754-2
5.6 Flame retardant according to IEC 60332-1
