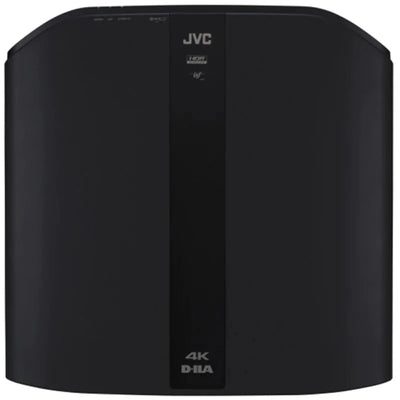

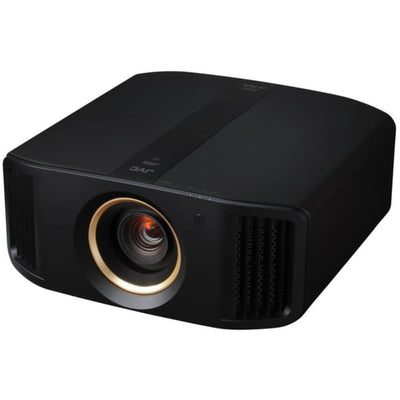

JVC DLA-RS1000 Reference Series 4K D-ILA Projector

The new DLA-RS1000 makes affordable, high quality native 4K home theater projectors a reality. This entry model features three new 0.69 inch D-ILA devices each with 8.8 million pixel resolution. It also features a 17-element, 15-group all-glass 65mm lens. Its high contrast, high brightness, and color reproduction ensure dynamic and realistic images that are sure to wow even the most discriminating viewer

• 1,800 Lumens with High Power Lamp (PK-L2618U)
• 40,000:1 Native (400,000:1 Dynamic) Contrast Ratio for deep blacks
• Frame Adapt HDR (firmware 3.xx and up) dynamically adjusts tone mapping for best 4K HDR10 image quality with any source
• New 0.69 inch native 4K D-ILA devices (x3)
• 17-element, 15-group all-glass 65mm diameter high quality lens
• Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs
• ISF (Imaging Science Foundation) Licensed
• HDR10 Compatibility with Auto Tone Mapping
• Improved Clear Motion Drive with Motion Enhance
• Improved Multiple Pixel Control (MPC) — MPC works with 4K60P (4:4:4) signals
• Low Latency Mode improves picture, speeds operation and reduces gaming/PC frame delays
• New Installation Mode simplifies setup and memorizes up to 10 customizable picture preferences

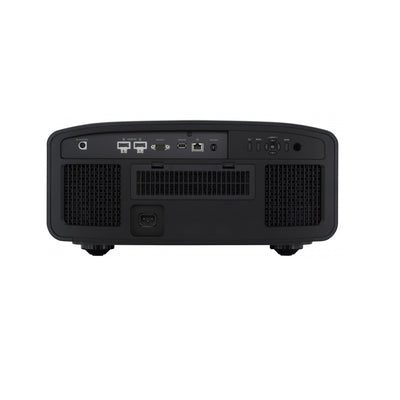

• Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output

DLA-RS1000 SPECIFICATIONS

Imaging device
0.69 in D-ILA Device (4096 × 2160) ×3

Native 4K
Yes

Resolution
4096 x 2160

Lens
2X Motorized 65 mm

Lens Shift
Motorized Shift±80% Vertical and ±34% Horizontal

Light Source
NSH 265W Lamp
(lamp life: approx. 4500 hours when the lamp is in Low mode)

Contrast Ratio
Native: 40,000:1 | Dynamic: 400,000:1

Input terminals
HDMI
2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)

Digital Video Signal
480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz,
1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz,
3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz*
4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz,
4096x2160/50Hz*, 4096x2160/60Hz*

3D Signal

Frame Packing
720p/50 Hz, 720p/60 Hz, 1080p/24 Hz

Side-by-Side
1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz,
1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz

Top-and-Bottom: 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz

Dimensions

(WxHxD-inches): 19 5/8 x 9 1/4 x 19 1/2

Weight (net) (lbs): 43
