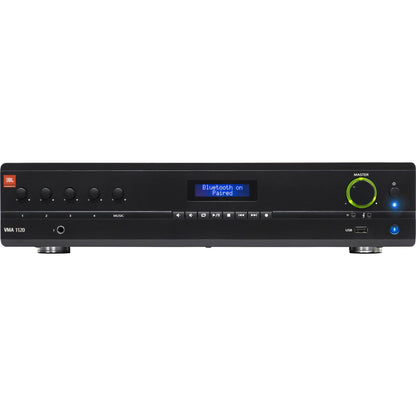

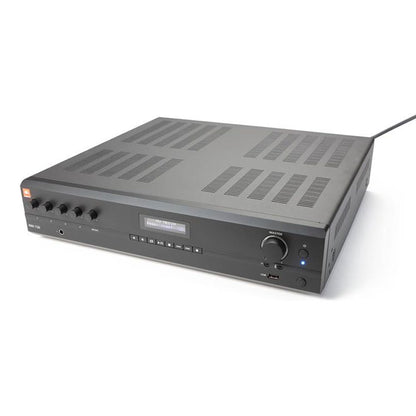

JBL VMA1120 Commercial Series 120W Mixer/Amplifier

JBL VMA1120 Suitable for commercial and industrial use

Sensitivity (SPL / 1 W @ 1 m) Mic Input: 5.5 mVrms Line Input: 1.3 Vrms RCA Input (Stereo In): 130 mVrms

Impedance Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms

Frequency Response 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB Line Out: 20 Hz - 20 kHz, ±1 dB Max.

Power Consumption 120 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤0.5% THD)

Dimensions 17 x 16.3 x 3.5" / 432 x 415 x 88 mm

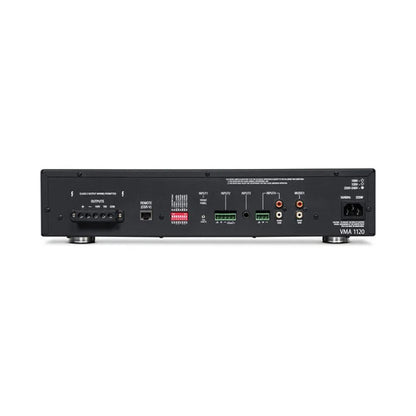

Euroblock, RCA, and 1/4" TRS input connectors

Configurable output routing

Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
