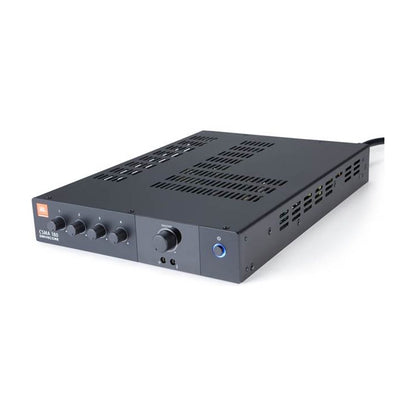

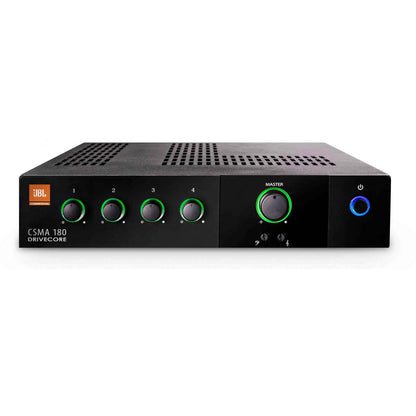

JBL CSMA 180 4 Input 80W Commercial Mixer Amplifier

JBL CSMA 180  offers Four inputs into one output channel with 120W of power.

Sensitivity (SPL / 1 W @ 1 m) Mic Input: 3 mV RMS Line Input: 775 mV RMS RCA Input: 300 mV RMS

Impedance Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms

Frequency Response 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB Line Out: 20 Hz - 20 kHz, ±1 dB Max.

Power Consumption 10 W, Power Required: 100 to 240 V thermal fuse in external transformer

Dimensions 8.6 x 11.9 x 1.7" / 21.9 x 30.3 x 4.3 cm

Independent Bass and Treble control for each output channel.

Input level and output volume control.
