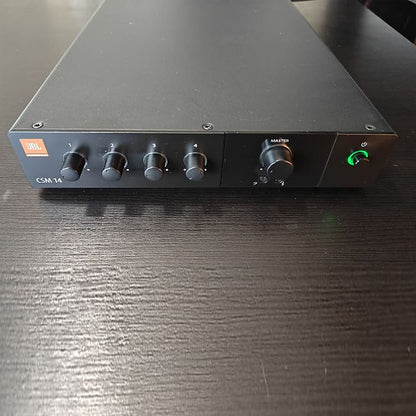

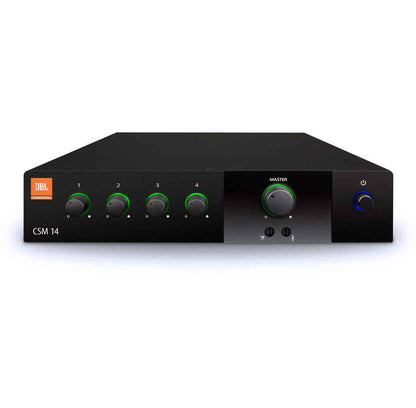

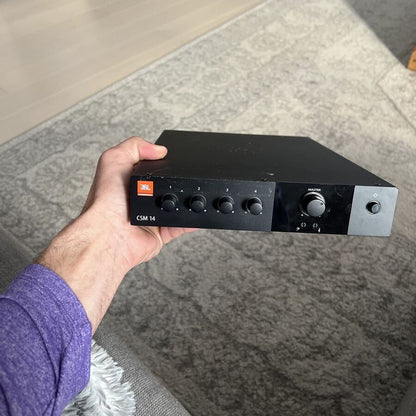

JBL CSM 14 - Four Inputs/One Output Commercial Series Mixer

JBL CSM 14 Four Inputs/One Output Commercial Series Mixer offers  4 or 8 inputs with 1 or 2 channel outputs

Sensitivity (SPL / 1 W @ 1 m) Mic: 3 mV RMS Line: 300 mV RMS RCA: 300 mV RMS

Impedance Mic: 400 ohms Line: 20 kOhms RCA: 50 kOhms

Frequency Response 20 to 20,000 Hz ±1 dB Max.

Power Consumption 10 W, Power Required: 100 to 240 V thermal fuse in external transformer

Dimensions 1.7 x 8.6 x 11.9" (43.3 x 218.5 x 303.4 mm)

Fanless, space-saving 1U design

Configurable output routing (2 channel models only)

Independent bass/treble controls

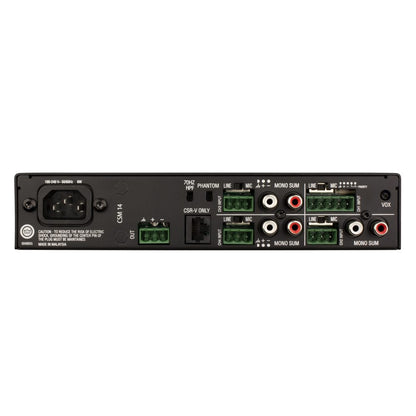

Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
