JAMO Setup S 803 HCS Home Cinema Package
Details

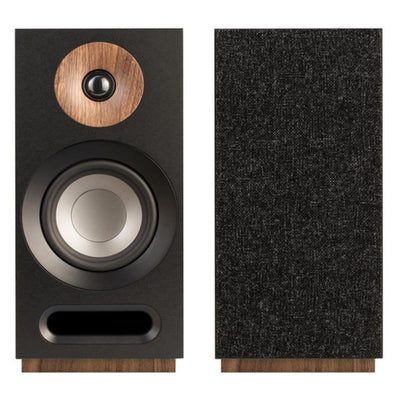

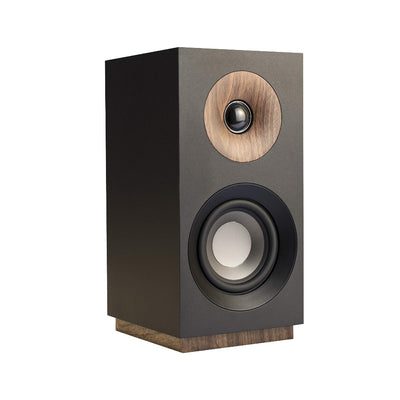

The S 803 HCS is the most compact system of the Jamo STUDIO 8 series. Dual S 803 Dolby Atmos ready bookshelf speakers, a perfectly tuned center channel speaker, and two S 801 speakers for surround sound add up to and incredible yet compact home theater.
COMPACT, YET POWERFUL
- Front-firing tube port allows for versatility in placement (in cabinets, against walls, etc.) and enhanced, cleaner bass response.
- Studio 8 WaveGuide technology focuses high frequencies for dynamic, powerful sound.
BEAUTIFUL, CONTEMPORARY DESIGN
- Fully magnetic grilles - no mounting holds or push pins - for a clean, minimalist front baffle design.
- Large, woven pattern linen grilles create visual interest with heavy texture and come in two unique colors - heather gray with white models, and charcoal gray for black or walnut finishes.
- Wood grain accents around the tweeters, at the bases and feet give a handcrafted, natural look.
- A 3" taper on the cabinet accentuates the slim design aesthetic of Studio 8 speakers.
DOLBY ATMOS READY
- Dolby Atmos ready speakers deliver sound that comes alive from all directions, including overhead, to fill any room with astonishing clarity,
detail and depth.
Klipsch R-100SW
The Klipsch R-100SW subwoofer delivers incredibly deep bass via a 10″ front-firing driver featuring a spun-copper IMG woofer and all digital amplifier.
Frequency Response: 57Hz - 26kHz (± 3dB)
Sensitivity:87dB (2.83V @ 1m)
Power Handling:80W / 160W (peak)
Impedance:8Ω
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver:127mm (5”) Polyfibre Woofer
Crossover:2kHz
Speaker Enclosure:MDF
Inputs:Single Binding Posts (Main / Height)
Top-Contacts:Dolby Atmos-ready with S 8 ATM speaker connected
Finishes:Black or White
Dimensions (H x W x D):353 x 191 x 252mmS 801
Frequency Response:76Hz - 26kHz (± 3dB)
Sensitivity:85dB (2.83V @ 1m)
Power Handling:60W / 120W (peak)
Impedance:8Ω
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 102mm (4”) Polyfibre Woofers
Crossover:2kHz
Speaker Enclosure:MDF

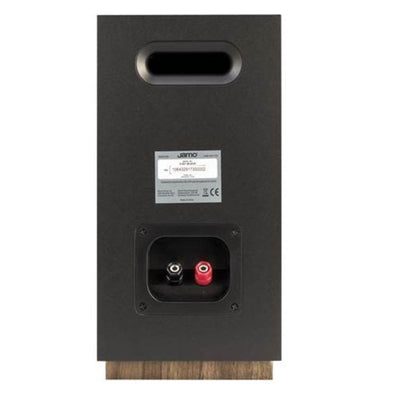

Inputs:Single Binding Posts
Finishes:Black, Walnut or White
Dimensions (H x W x D):285 x 156 x 163mmS 81 CENTER
Frequency Response: 71Hz - 26kHz (± 3dB)
Sensitivity:86dB (2.83V @ 1m)
Power Handling:60W / 240W (peak)
Impedance:8Ω
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver:2 x 102mm (4”) Polyfibre Woofer
Crossover:2kHz
Speaker Enclosure:MDF
Inputs:Single Binding Posts
Finishes:Black, Walnut or White
Dimensions (H x W x D):184 x 435 x 220mm
Klipsch R-100SW
Frequency Response: 32Hz - 120Hz +/- 3dB
Maximum acoustic output: 112 dB
Amplifier type: All digital
Amplifier Power: 150W/300W
Amplifier Features: Volume, Low-pass, 0/180 phase,AutoPower On
Woofer: 10” high excursion spun-copper IMG woofer
Enclosure Material: MDF
Enclosure Type: Bass-Reflex via rear-firing port
Inputs: Line level/LFE RCA jacks
Height: 14.5” (368 mm)
Width: 12.5” (318 mm)
Depth: 16.4” (417 mm)
Weight: 24 lbs (10.9 kg)
