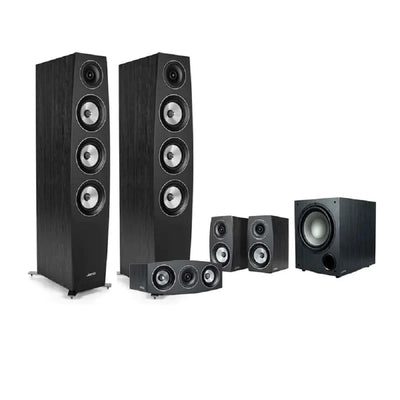

JAMO Setup C Series Cinema Package

Product specification

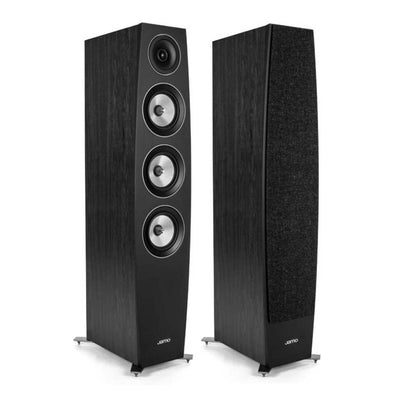

C97 II Floor Standing Speaker Specifications

System Type: 3-Way Bass Reflex
Frequency Response (Hz, +/-3dB):32Hz - 24.000 Hz
Sensitivity: 89 dB
High Frequency Driver: 25 / 1 Silk Dome with WaveGuide
Midrange Driver:152.4 / 6 HCCC Cone
Low Frequency Driver: 2 x 152.4 / 6 HCCC Cone
Impedance:6 Ohm
Power Handling:180 / 360 W
Inputs:Chrome plated bi-wiring screw terminals
Dimensions: 1072 x 215 x 342 / 42.2 x 8.5 x 13.5
Weight (Kg/lb): 54 lbs (24.5 kg)

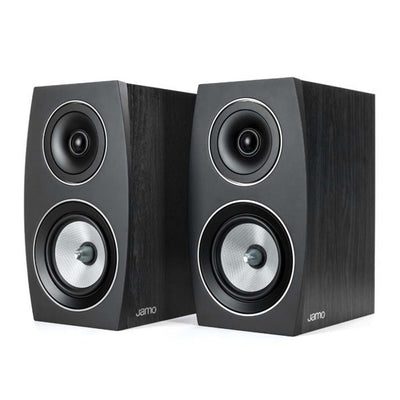

C93 II Bookshelf Speaker Specifications
System Type:2-Way Bass Reflex
Frequency Response (Hz, +/-3dB):45Hz - 24kHz
Sensitivity:88 dB
High Frequency Driver: 25 / 1 Silk Dome with WaveGuide
Low Frequency Driver:152.4 / 6 HCCC Cone
Impedance:6 Ohm
Power Handling (Watts Long/Short Term): 120 / 240
Inputs:Chrome plated screw terminals
Dimensions:350 x 200 x 259 / 13.8 x 7.9 x 10.2
Weight (Kg/lb):6.4 lbs (14kg)

C9 II Center Speaker Specifications
System Type:2-Way Bass Reflex
Frequency Response (Hz, +/-3dB): 55Hz - 24kHz
Sensitivity:88 dB
High Frequency Driver: 25 / 1 Silk Dome with WaveGuide
Low Frequency Driver: 2 x 101.6 / 4 HCCC Cone
Impedance:6 Ohm
Power Handling (Watts Long/Short Term):140 / 280
Inputs: Chrome plated screw terminals
Dimensions:179 x 460 x 219. 5 / 7 x 18.1 x 8.6
Weight (Kg/lb):6.8 lbs (15 kg)

C912 Subwoofer
Frequency Response: 29Hz - 125Hz
Maximum Acoustic Output: 114dB
Amplifier type: Class D with Analog

Preamp Stage
Amplifier Power: 200W RMS / 400W Peak
Woofer: 10” Long-Throw IMG
Enclosure Material: MDF
Enclosure type: Bass Reflex via Front-Firing

Tube Port
Inputs:Dual RCA/LFE Line In, WA-2 Wireless Port
Height: 454mm / 17.89”
Width:356mm / 13.99”
Depth: 480mm / 18.88”
Weight:18.94 kg / 41.75 lbs
