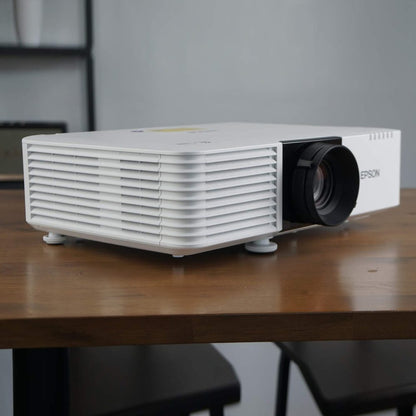

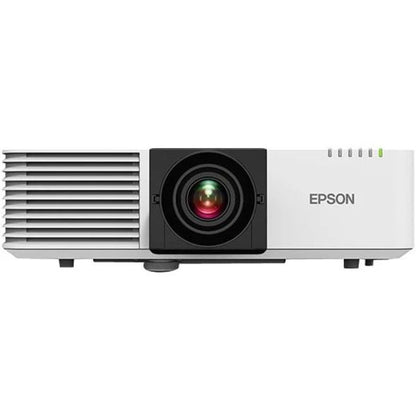

Epson EB-L520U 5200 Lumens WUXGA Laser Projector

Color Light Output 5,200 Lumen- 3,640 Lumen (economy) In accordance with IDMS15.4

White Light Output 5,200 Lumen - 3,640 Lumen (economy) In accordance with ISO 21118:2020

Resolution WUXGA

Resolution Enhancement Full HD

Aspect Ratio 16:10

On-Screen Pixel Count 2,304,000

Contrast Ratio 5,000,000 : 1

Light source Laser

Laser Light source 20,000 hours Durability High, 30,000 hours Durability Eco

Keystone Correction Manual vertical: ± 30 °, Manual horizontal ± 30 °

Colour Video Processing 10 Bits

2D Vertical Refresh Rate 192 Hz - 240 Hz

Colour Reproduction Upto 1.07 billion colours

Throw Ratio 1.35 - 2.20:1

Zoom Manual, Factor: 1 - 1.6

Projection Lens Zoom Ratio 1.35 - 2.2 : 1

Lens Optical

Screen Size 50 inches - 500 inches

Projection Lens F Number 1.5 - 1.7

Projection Lens Focal Length 20 mm - 31.8 mm

Projection Lens Focus Manual

Offset 27 : 1

Power consumption

234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)

Supply Voltage AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions 440‎ x 122 x 304 mm (Width x Depth x Height)

Product weight 7.7 kg

Noise Level Normal: 31 dB (A) - Economy: 23 dB (A)

Supported Temperature Storage -10° C - 60° C

Supported Humidity Operation 20% - 80%, Storage 10% - 90%

Included Software EasyMP Multi PC Projection

Options

Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01

Loudspeaker 10 Watt

Room Type / Application

Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction

Positioning Ceiling Mounted, Desktop, Floor, Wall Mounted
