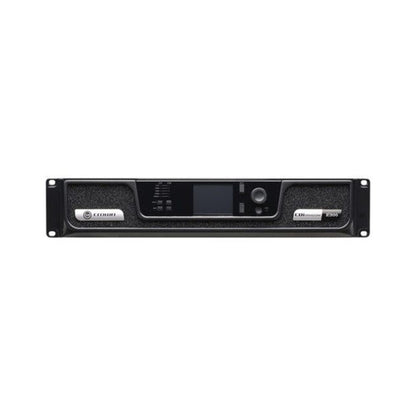

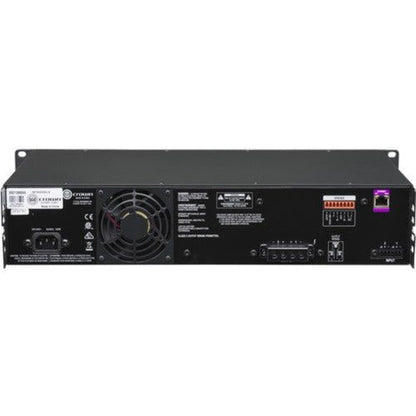

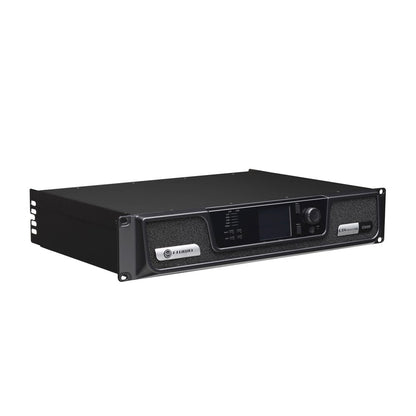

Crown NCDI2X300BL-U 2-Channel Drive Core Series Power Amplifier
Product details
Description
Details
Highlights:
- High-Quality Sound: The Crown NCDI2X300BL-U Drive Core Series Power Amplifier delivers exceptional audio performance with its two-channel design and ±0.25dB frequency response for accurate and transparent sound reproduction.
- Low Total Harmonic Distortion: With only 0.35% THD at full rated power, this amplifier ensures minimal distortion, allowing your music to be heard in its purest form without any unwanted artifacts.
- Flexible Load Impedance: Whether in stereo/dual mode or bridge mono, the NCDI2X300BL-U can handle a wide range of load impedances, from 2Ω to 16Ω, as well as 70Vrms and 100Vrms, making it versatile for various speaker configurations.
- High Damping Factor: With a damping factor greater than 1000 (20Hz to 100Hz), this amplifier provides excellent control over speaker drivers, ensuring tight and precise bass response.
- Efficient Cooling: Equipped with a continuously variable speed forced air cooling system with front-to-back airflow, the NCDI2X300BL-U maintains optimal operating temperatures, reducing fan noise and increasing the amplifier's longevity.
Overview
The Crown NCDI2X300BL-U 2-Channel Drive Core Series Power Amplifier is a reliable and versatile audio solution that delivers top-notch performance for professional audio setups. Whether you're setting up a high-end sound reinforcement system, a commercial installation, or a home studio, this amplifier provides the power, precision, and flexibility needed to elevate your audio experience.
Specifications
| Output Channels | 2 |
| Frequency Response (8Ω, 20Hz - 20kHz) | ±0.25dB |
| Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | 0.35% |
| Damping Factor (20Hz to 100Hz) | >1000 |
| Load Impedance (Stereo/Dual Mode) | 2Ω - 16Ω; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4Ω - 16Ω; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (±10%) | 100V-240V ~ 50/60Hz |
| Power Connector | 15A IEC |
| Dimensions (W x H x D) | 483 mm x 89 mm x 362 mm (19 in x 3.5 in x 14.25 in) |
| Weight | 8.53 kg (18.8 lbs) |
Experience the power and versatility of the Crown NCDI2X300BL-U 2-Channel Drive Core Series Power Amplifier. Whether you're a touring musician, a sound engineer, or an audio enthusiast, this amplifier delivers outstanding sound quality with low distortion and efficient cooling. Its flexible load impedance and high damping factor make it a reliable and efficient solution for a wide range of audio applications, ensuring your music is heard with clarity and precision.
