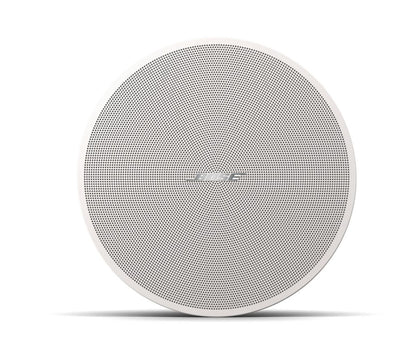

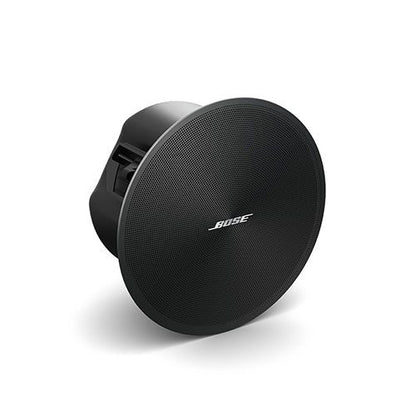

BOSE DESIGNMAX DM3C-LP PAIR
Product details
Description
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
-
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Technical Specification
COMPLIANCE
- Safety Agency Ratings:UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant
PHYSICAL
- Colors :Black (RAL 9005), white (similar to RAL 9003), paintable
- Enclosure Material:Engineered-plastics front baffle with integrated steel-formed backcan
- Environmental:Indoor only
- Grille:Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
- Ceiling Cutout:8.2 in (208 mm)
- Logo:Rotatable, removable

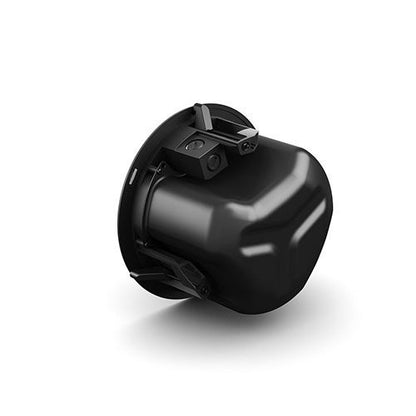

- Suspension/Mounting:(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
- Operating Temperature Range:0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D):10.0 in × 6.0 in (255 mm × 154 mm), loudspeaker diameter × depth / 8.0 in × 5.7 in (203 mm × 144 mm), backcan diameter × depth
- Net Weight:5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)
- Shipping Weight:19.2 lb (8.7 kg), pair
