Home Theater Wiring for a Refined Cinema Room

A luxury cinema room can be visually flawless and still disappoint the moment a soundtrack starts, a source fails to appear on screen, or a remote cannot control the room. The difference is often hidden behind the walls. Home theater wiring is the infrastructure that determines whether a cinema feels effortless to use, sounds convincing at every seat, and remains ready for the next generation of equipment.

For villa owners, architects, and interior designers, wiring should be treated as part of the architectural design rather than an installation detail left until the end. It affects equipment placement, wall finishes, ceiling details, acoustic treatments, lighting scenes, and future service access. A carefully engineered plan protects the refined appearance of the room while giving every system the pathway it needs to perform.

Home Theater Wiring Starts With the Room Plan

The first question is not which cable to buy. It is how the room will be used. A dedicated cinema with tiered seating, a large projection screen, and immersive surround sound demands a different approach than a media lounge that must also work for casual television, gaming, and entertaining.

Screen location, seating positions, speaker layout, and equipment-rack placement should be established before walls are closed. This allows cable routes to remain short where possible, concealed where necessary, and accessible when service is required. It also prevents a common compromise: placing speakers or displays where wiring is easiest instead of where performance is best.

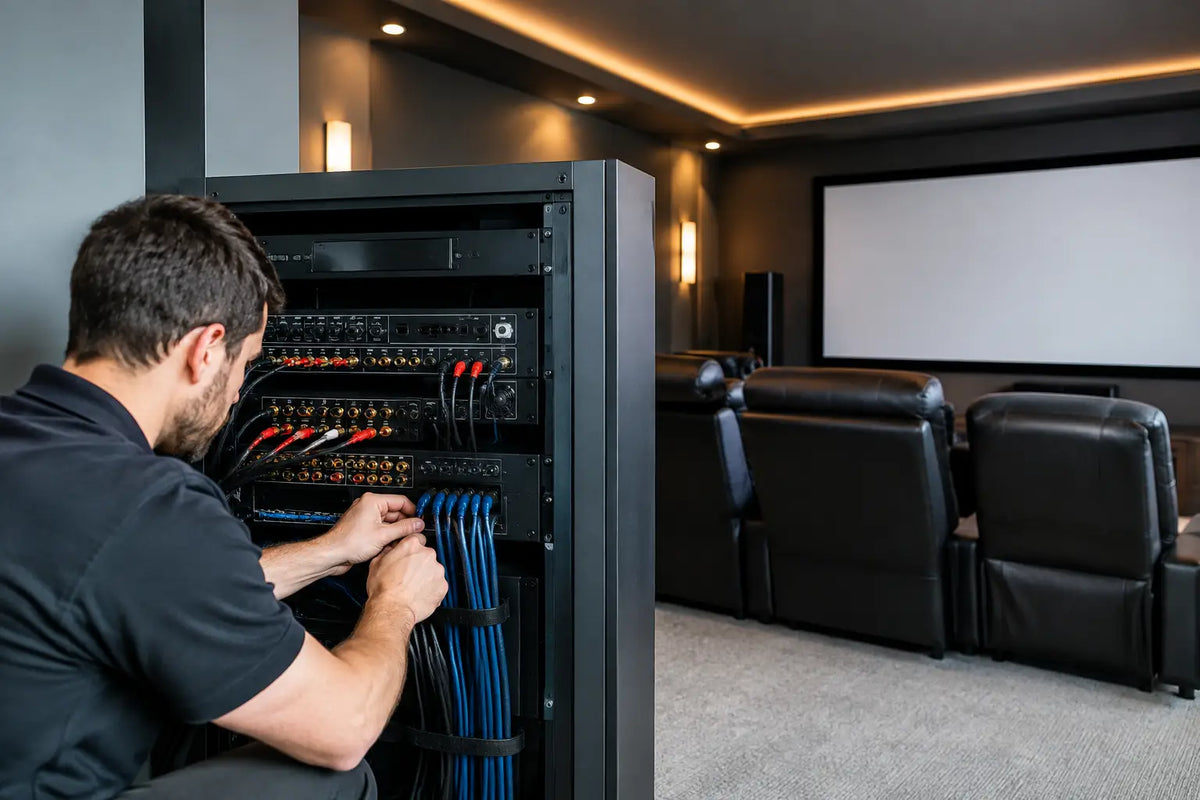

In a premium installation, the equipment is usually housed outside the viewing area, either in a dedicated AV rack, a nearby closet, or a ventilated joinery cabinet. Removing amplifiers, source devices, network hardware, and control processors from the cinema preserves a clean aesthetic and reduces fan noise. It does, however, require thoughtful pathways between the rack and the room.

A wiring design should also account for the room’s construction. Concrete walls, deep ceiling coffers, stone finishes, and acoustic isolation assemblies can make later changes expensive or disruptive. Planning conduits before finishing work is not an extra precaution. It is what keeps a sophisticated room adaptable without compromising its interior.

Start With Signal Paths, Not Products

Premium equipment changes over time. Signal paths last much longer. Rather than wiring only for a current projector, receiver, or streaming device, define the routes between source equipment, display, speakers, network services, control interfaces, and power.

This distinction matters when technology evolves. A projector may be replaced with a higher-bandwidth model, an AV processor may move from a 7.1 layout to immersive audio, or a homeowner may want additional gaming inputs. If the pathway is in place, an upgrade can be controlled and clean. If it is not, the project may involve opening finished walls or accepting visible surface cabling.

Conduit is one of the most valuable elements in a future-ready design. A properly sized conduit with accessible pull points allows new low-voltage cables to be installed later. Empty conduits to the projector location, display wall, front stage, seating area, and key ceiling zones offer practical insurance against changing standards.

The Essential Layers of a Cinema Wiring Design

A cinema room works best when its systems are planned as coordinated layers. Audio, video, network, control, and electrical infrastructure each have distinct requirements, yet they must operate as one experience.

Speaker Wiring and Immersive Audio

Speaker cable should be selected according to run length, amplifier capability, and speaker specification. In larger rooms, longer runs may require heavier-gauge cable to maintain performance. Quality terminations, clear labeling, and careful routing are equally important. The best cable cannot compensate for an unmarked, poorly terminated installation that is difficult to diagnose later.

Immersive formats introduce additional complexity. Ceiling speakers, surround channels, subwoofers, and front speakers all need defined routes before ceilings and wall treatments are finalized. The speaker layout must follow acoustic geometry, not simply room symmetry. A ceiling feature, light fitting, or air-conditioning grille can force small adjustments, but these should be resolved alongside the acoustic and interior design plans.

Subwoofers deserve particular attention. Some systems use powered subwoofers that require both a low-level signal cable and local electrical power. Others may benefit from multiple subwoofer locations to deliver more even bass across several seats. Providing wiring for more than one possible position gives the calibration team options after the room is complete.

Video, Display, and Source Connections

High-bandwidth video connections are among the most time-sensitive elements of home theater wiring. Projectors and displays increasingly require substantial data capacity for high-resolution content, high frame rates, HDR formats, and advanced gaming features. Long cable runs can be especially demanding, particularly when equipment is installed in a remote rack.

For this reason, a well-designed cinema may use a combination of certified active cabling, fiber-based video solutions, and conduit for future replacement. The right choice depends on cable distance, source requirements, and the display technology selected. A short run to a wall-mounted television is not the same engineering challenge as a long route to a ceiling-mounted projector.

It is wise to provide more than one pathway where the design allows. A primary video route handles the current system, while a spare conduit or secondary cable route provides a sensible contingency. This is not duplication for its own sake. It protects the room from the inconvenience of a single inaccessible cable becoming the limiting factor in a future upgrade.

Network and Control Infrastructure

A luxury cinema should not depend solely on wireless connectivity. Streaming services, control systems, media servers, gaming platforms, and firmware updates all benefit from stable wired network connections. Dedicated Ethernet cabling to the AV rack, projector or display location, control panels, wireless access points, and key source locations creates a more reliable foundation.

Control wiring is equally central to the experience. The goal is not a collection of remotes on a side table. It is one intuitive command that can lower shades, set lighting, start the projector, select the correct source, and adjust the room to the appropriate viewing scene.

Depending on the project, this may include wired keypads, touch panels, occupancy sensors, motorized curtains, lighting processors, and interfaces for HVAC. These systems should be coordinated early because they cross into electrical, automation, and interior packages. I-Trust Systems approaches this coordination as a complete environment, ensuring that cinematic performance and intelligent living work together rather than compete for space.

Power, Lighting, and Protection

Low-voltage cabling is only one part of the design. Dedicated electrical circuits for AV equipment, projector power, motorized seating, lighting, and climate equipment should be considered with a qualified electrical team. Sensitive electronics benefit from clean, protected power, while high-output amplifiers may have meaningful electrical demands of their own.

Avoid placing power and signal wiring tightly together for extended distances where possible. Separation helps reduce the chance of unwanted interference. Where crossings are unavoidable, thoughtful routing and proper installation practice make a difference.

Lighting should also be wired in zones, not as a single on-off circuit. A cinema may need separate control for entry lighting, wall sconces, step lights, ceiling details, screen wash, and cleaning mode. The most elegant lighting system disappears during a film, guides guests safely through the room, and restores the space gracefully when the credits end.

Build for Serviceability, Not Just a Clean Handover

The most expensive wiring mistake is one that cannot be reached. Finished walls and bespoke millwork can conceal a beautiful installation, but they should not make maintenance impossible. Every cable should be labeled at both ends. Equipment racks should have ventilation, adequate working clearance, organized cable management, and enough capacity for future devices.

Service loops provide a small amount of extra cable at accessible termination points, allowing equipment to be moved or reconnected without strain. They should be measured and controlled, not left as tangled excess. Similarly, wall plates and speaker terminals should be located where they can be accessed without dismantling custom furniture or acoustic paneling.

A professional commissioning process is the final test of the wiring design. Each speaker line, video route, network point, control command, and lighting scene should be tested before the room is handed over. Audio calibration can then refine speaker levels, timing, and bass response for the actual furnishings and finishes in the completed room.

Common Shortcuts That Limit the Experience

The most frequent shortcut is planning only for visible equipment. A display, speakers, and an AV receiver may create a functioning system, but they rarely create the composed experience expected in a premium residence. Another is relying entirely on wireless connections. Wireless technology has a role, yet it is not a substitute for structured infrastructure in a high-performance room.

Undersized conduits are another costly issue. A cable route that accommodates today’s connection may not allow tomorrow’s larger connector heads or fiber assemblies to pass through. Leaving pull strings in empty conduits and documenting routes, cable types, and termination points makes future work far more straightforward.

Finally, do not allow acoustics to become an afterthought. Speaker cabling, acoustic treatments, HVAC noise control, and isolation details must be coordinated. A powerful sound system cannot overcome a room with uncontrolled reflections, intrusive mechanical noise, or poorly positioned speakers.

A cinema room should feel composed long before the film begins. When the wiring is planned with the same care as the screen, seating, finishes, and lighting, the technology stays discreet, the performance remains exceptional, and the room is prepared to evolve with the life lived around it.
