Designed for smaller rooms, the 805 HCS Home Cinema System provides amazing acoustics without sacrificing space. The beautiful, contemporary design of this STUDIO 8 series home theater accents any modern home decor at an obtainable price.
COMPACT, YET POWERFUL
- Front-firing tube port allows for versatility in placement (in cabinets, against walls, etc.) and enhanced, cleaner bass response.
- Studio 8 WaveGuide technology focuses high frequencies for dynamic, powerful sound.
BEAUTIFUL, CONTEMPORARY DESIGN
- Fully magnetic grilles - no mounting holds or push pins - for a clean, minimalist front baffle design.
- Large, woven pattern linen grilles create visual interest with heavy texture
- Wood grain accents around the tweeters, at the bases and feet give a handcrafted, natural look.
- A 3" taper on the cabinet accentuates the slim design aesthetic of Studio 8 speakers.
S 805
Type: Floorstanding speaker
Frequency Response: 49Hz - 26kHz (+/- 3dB)
Sensitivity: 88dB (2.83V @ 1m)
Power Handling: 80W / 160W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 127mm (5”) Polyfiber Woofer
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 787mm x 191mm x 252mm
S 801
Type: Bookshelf speaker
Frequency Response: 76Hz - 26kHz (+/- 3dB)
Sensitivity: 85dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 102mm (4”) Polyfiber Woofer
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 285mm x 156mm x 163mm
S 81 CEN
Type: Center speaker
Frequency Response: 71Hz - 26kHz (+/- 3dB)
Sensitivity: 86dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver : 2 x 102mm (4”) Polyfiber Woofers
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 184mm x 435mm x 220mm

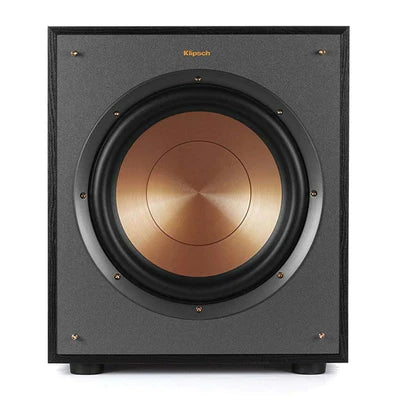

Klipsch R-100SW
Frequency Response: 32Hz - 120Hz +/- 3dB
Maximum acoustic output: 112 dB
Amplifier type: All digital
Amplifer Power: 150W/300W
Amplifer Features: Volume, Low-pass, 0/180 phase,AutoPower On
Woofer: 10” high excursion spun-copper IMG woofer
Enlclosure Material: MDF
Enlclosure Type: Bass-Reflex via rear-firing port
Inputs: Line level/LFE RCA jacks
Height: 14.5” (368 mm)
Width: 12.5” (318 mm)
Depth: 16.4” (417 mm)
Weight: 24 lbs (10.9 kg)
