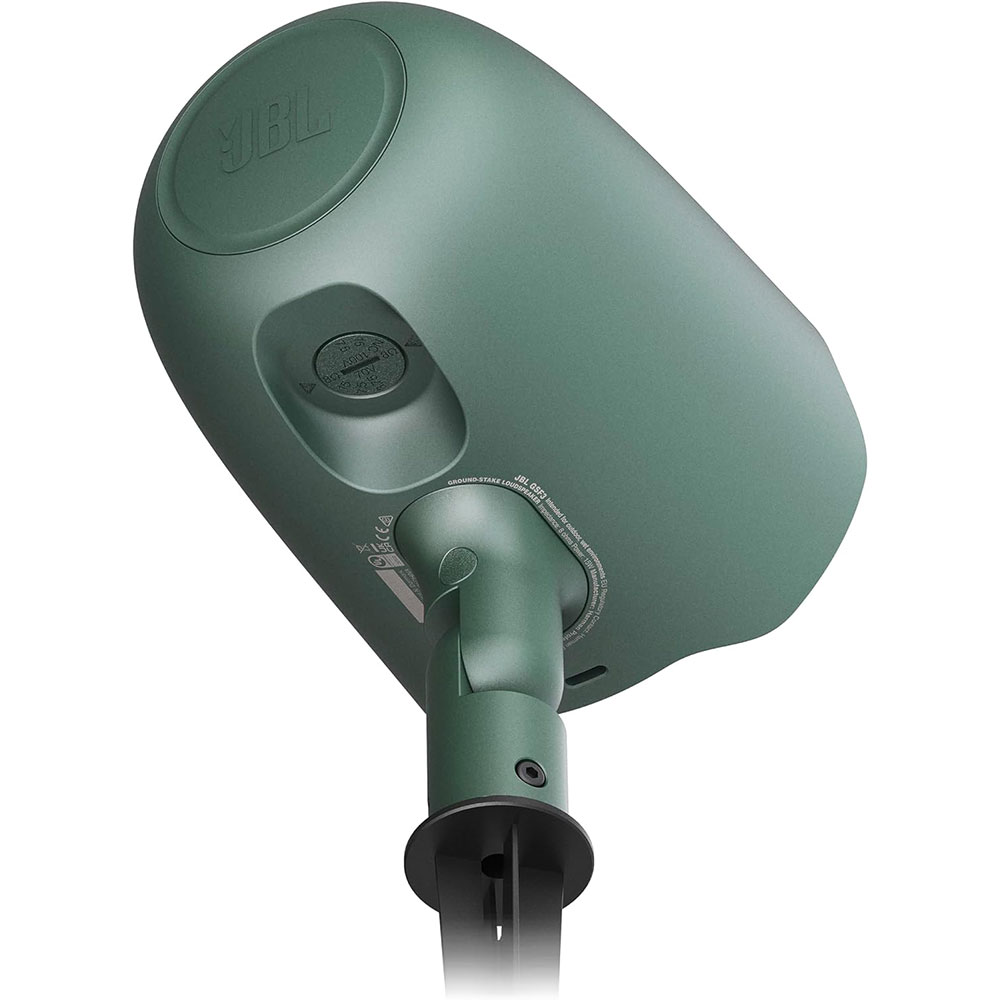

JBL GSF6 Coax 6.5 Inch Full-Range Landscape Loudspeaker
1,765.00 AED
30 W GSF6 Coax 6.5 Inch Full-Range Landscape Loudspeaker
Frequency Range (-10dB) 65 Hz – 20 kHz
165 mm (6.5 in) woofer 25 mm (1 in) voice coil on aluminum
Coverage Pattern 70° conical
- Description
- WARRANTY
- Reviews (0)
Description
Frequency Range (-10dB) 65 Hz – 20 kHz
Frequency Response (+/-3 dB) 90 Hz – 18 kHz
Power Rating 100 W Continuous Program (2 hrs)
50 W (200 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity 87 dB (ave. 300 kHz – 12 kHz)
Maximum SPL 110 dB peak (104 dB continuous, 2 hr) @ 1m
Coverage Pattern 70° conical
Nominal Impedance 8 Ω (at 8Ω tap)
Transformer Taps 70V: 30 W, 15 W, 7.5 W
100V: 30W, 15 W Drivers
165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former
25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Pine Green RAL 6028, or Beige Grey RAL 7006
Dimensions Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in).
Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.
Net Weight 3.5 kg (7.7 lbs)
Included Accessories (1) Ground Stake Bracket; (1) L-Bracket
