Highlights:

  • Powerful 2-Channel Amplification: The Crown NCDI2X300-U Audio CDi 2|300 delivers 300W per channel at 4 ohms, providing robust and high-quality audio performance for professional audio applications.
  • Low Distortion and Noise: With a THD of 0.35% at full rated power and a signal-to-noise ratio of over 104dB, this amplifier ensures clear and detailed sound reproduction, capturing every nuance of your audio source.
  • Wide Frequency Response: The amplifier’s frequency response of 20 Hz to 20 kHz (+/-0.5dB at 8 ohms) guarantees accurate sound reproduction across the entire audio spectrum.
  • High Damping Factor: With a damping factor greater than 1000 (20 Hz to 100 Hz), the NCDI2X300-U provides tight control over speaker drivers, reducing unwanted resonance and distortion.
  • Efficient and Versatile: Featuring balanced and unbalanced input options, this amplifier can seamlessly integrate into various audio setups, making it suitable for live sound reinforcement, installations, and more.


Overview:

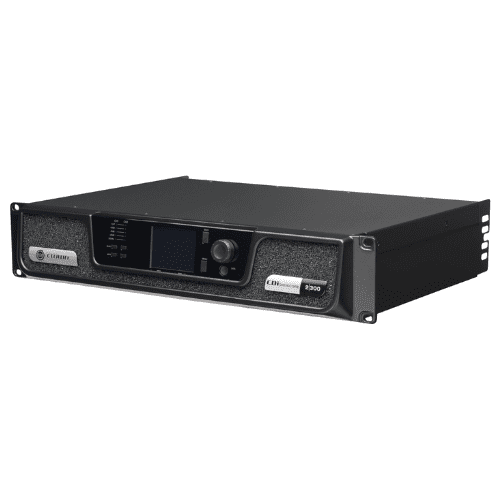

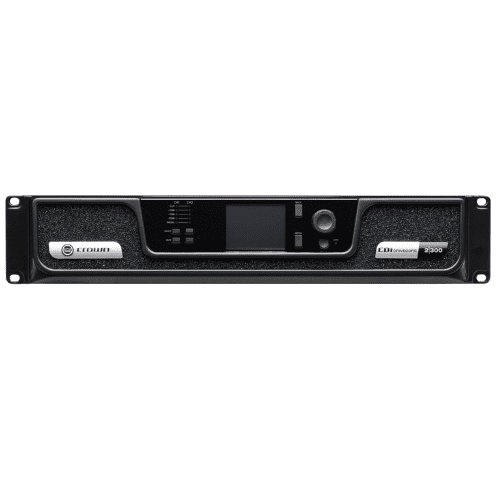

The Crown NCDI2X300-U Audio CDi 2|300 2-Channel Amplifier is a powerful and versatile audio solution, ideal for professionals seeking high-performance amplification. Whether you’re setting up a live sound system, running a recording studio, or enhancing audio installations, this amplifier delivers the power, clarity, and reliability you need to elevate your audio experience.

Specifications:

BLU link No
Channels 2
Sensitivity (for full rated power at 8 ohms) 0.7V RMS
Rated Power Output (per channel @ 4 ohms) 300W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz – 20kHz at 8 ohms) > 104dB
THD (full rated power, 20 Hz – 20 kHz) 0.35%
Damping Factor (20 Hz to 100 Hz) > 1000
Frequency Response (8Ω, 20 Hz – 20 kHz) +/-0.5dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80dB
Input Impedance (nominally balanced, nominally unbalanced) 20 kΩ balanced, 10 kΩ unbalanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 19 x 3.5 x 12.25
Weight 14.56 lbs (6.6 kg)
Power Supply Connector Standard IEC type 320 inlet for detachable connector 100 – 240V~



Elevate your audio experience with the Crown NCDI2X300-U Audio CDi 2|300 2-Channel Amplifier. Designed to deliver powerful and precise sound reproduction, this amplifier is the perfect choice for professional audio setups. With its wide frequency response, low distortion, and high damping factor, the NCDI2X300-U ensures your audio signals are faithfully reproduced with clarity and detail. Whether you’re a sound engineer, a performer, or an audio enthusiast, this amplifier will take your audio setup to the next level.
