Description
Details
Highlights:
- Wide Frequency Range: The QSC Acoustic Coverage AC-S4T Ceiling Speaker offers an effective frequency range of 170 Hz – 20 kHz, ensuring clear and balanced audio reproduction.
- High Sensitivity: With a sensitivity of 85 dB SPL, these speakers deliver sound with excellent clarity and efficiency.
- 130° Conical Coverage: Featuring a rated coverage of 130° conical, these speakers offer a wide and consistent sound dispersion, providing even coverage throughout the listening area.
- Powerful Transducers: The AC-S4T is equipped with a 100 mm [4 in] polypropylene woofer and a 25 mm [1 in] aluminum dome tweeter with 25 mm [1 in] voice-coil, delivering exceptional audio performance.
- Sturdy Construction: Made with UV-treated, high-impact ABS polymer and powder-coated steel grille and yoke material, these speakers are built to withstand indoor environments and ensure long-lasting durability.
- Easy Installation: These speakers come with a yoke mount system and euroblock connector for quick and hassle-free installation.

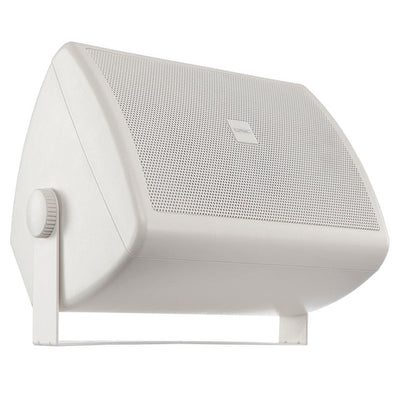

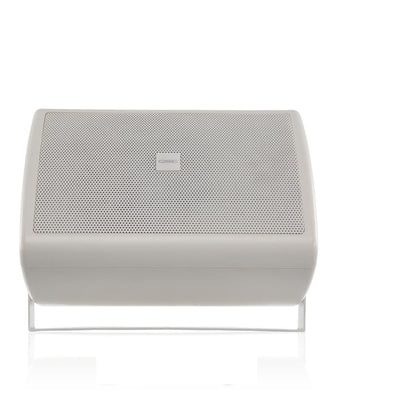

QSC Acoustic Coverage AC-S4T Ceiling Speaker
Experience powerful and clear audio performance with the QSC Acoustic Coverage AC-S4T Ceiling Speaker. Designed for indoor use, these speakers offer wide coverage and high sensitivity, making them ideal for various applications.
| Effective Frequency Range: | 170 Hz – 20 kHz |
| Rated Noise Power / Voltage: | 216 watts / 11.3 volts (rms) |
| Broad-band Sensitivity: | 85 dB SPL |
| Coverage Angle (-6 dB): | 130° conical (500 Hz – 5 kHz) |
| Directivity Factor (Q): | 6 |
| Directivity Index [dB]: | 8 |
| Maximum Continuous SPL: | 97 dB |
| Maximum Peak SPL: | 103 dB |
| Rated Impedance: | 8 ohms |
| Recommended Amplifier: | 32 watts |
| Transformer Taps: | 70V: 16, 8, 4, 2, 1 watts 100V: 16, 8, 4, 2 watts |
| LF Transducer: | 100 mm [4 in] polypropylene woofer |
| HF Transducer: | 25 mm [1 in] aluminum dome tweeter with 25 mm [1 in] voice-coil |
| Input Connector Type: | Euroblock connector with parallel output |
| Enclosure Material: | UV treated, high-impact ABS polymer |
I-Trust Systems Limited Warranty
I-Trust Systems (“Company”) warrants that the audio and video equipment (“Product”) sold by the Company will be free from defects in materials and workmanship under normal use for a period of one (1) year from the date of original purchase by the end-user (“Warranty Period”).
Coverage
This warranty covers:
- Defects in materials and workmanship in the Product
- Failures under normal use as specified in the Product’s user manual
Exclusions
This warranty does not cover:
- Damage resulting from accident, misuse, abuse, neglect, or improper maintenance
- Cosmetic damage, including scratches, dents, and broken plastic
- Damage caused by use with non-I-Trust Systems products
- Damage caused by service performed by anyone other than I-Trust Systems or its authorized service providers
- Products with missing or altered serial numbers
- Normal wear and tear
Remedy
If a defect arises during the Warranty Period, I-Trust Systems will, at its option:
- Repair the Product at no charge using new or refurbished replacement parts
- Replace the Product with a new or refurbished Product that is equivalent to the original Product
How to Obtain Warranty Service
To obtain warranty service, contact I-Trust Systems customer support at:
Email: info@itrustsystems.com Phone: 800 487 878
You will be required to provide proof of purchase and may be asked to return the Product to I-Trust Systems (shipping costs prepaid).
Limitation of Liability
I-TRUST SYSTEMS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.
Duration of Implied Warranties
ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
